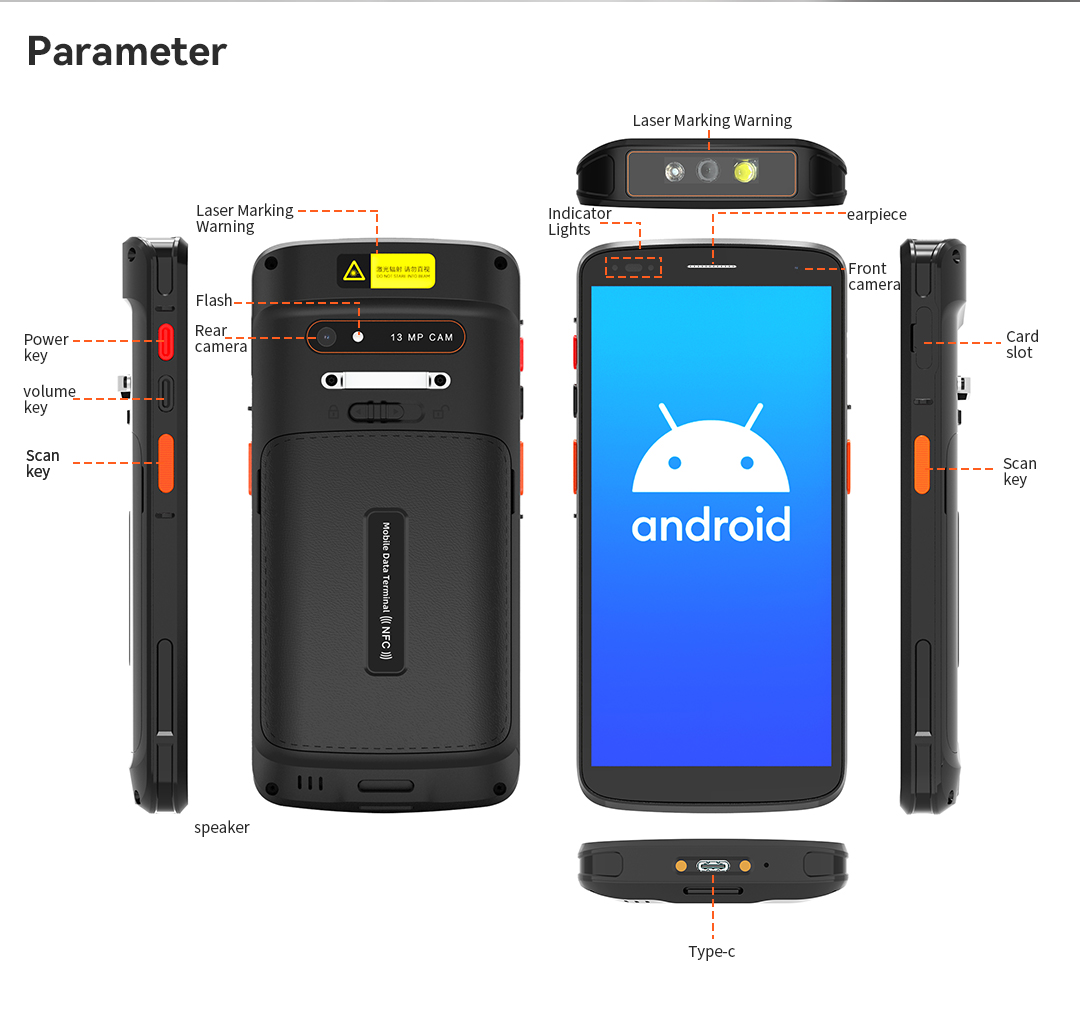

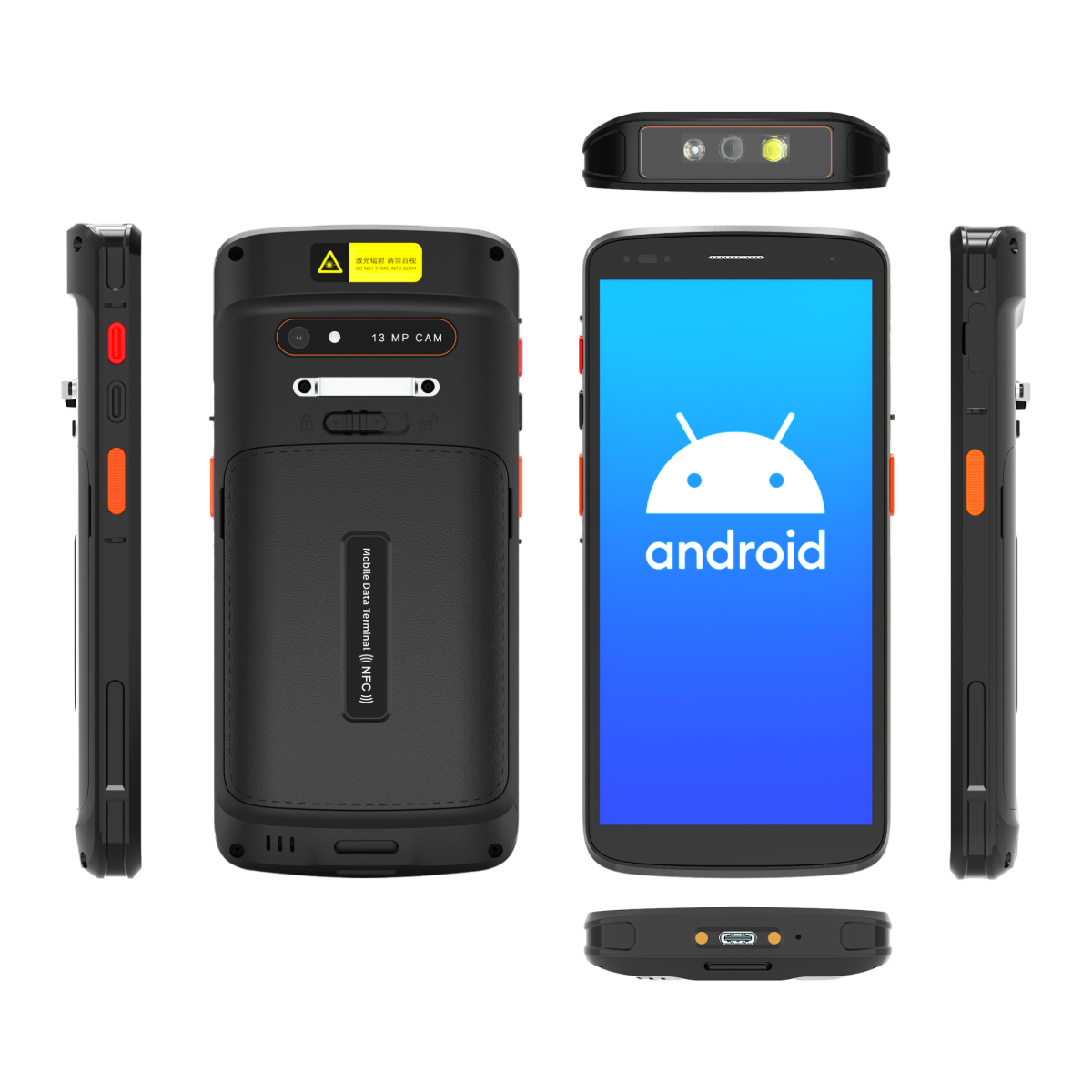

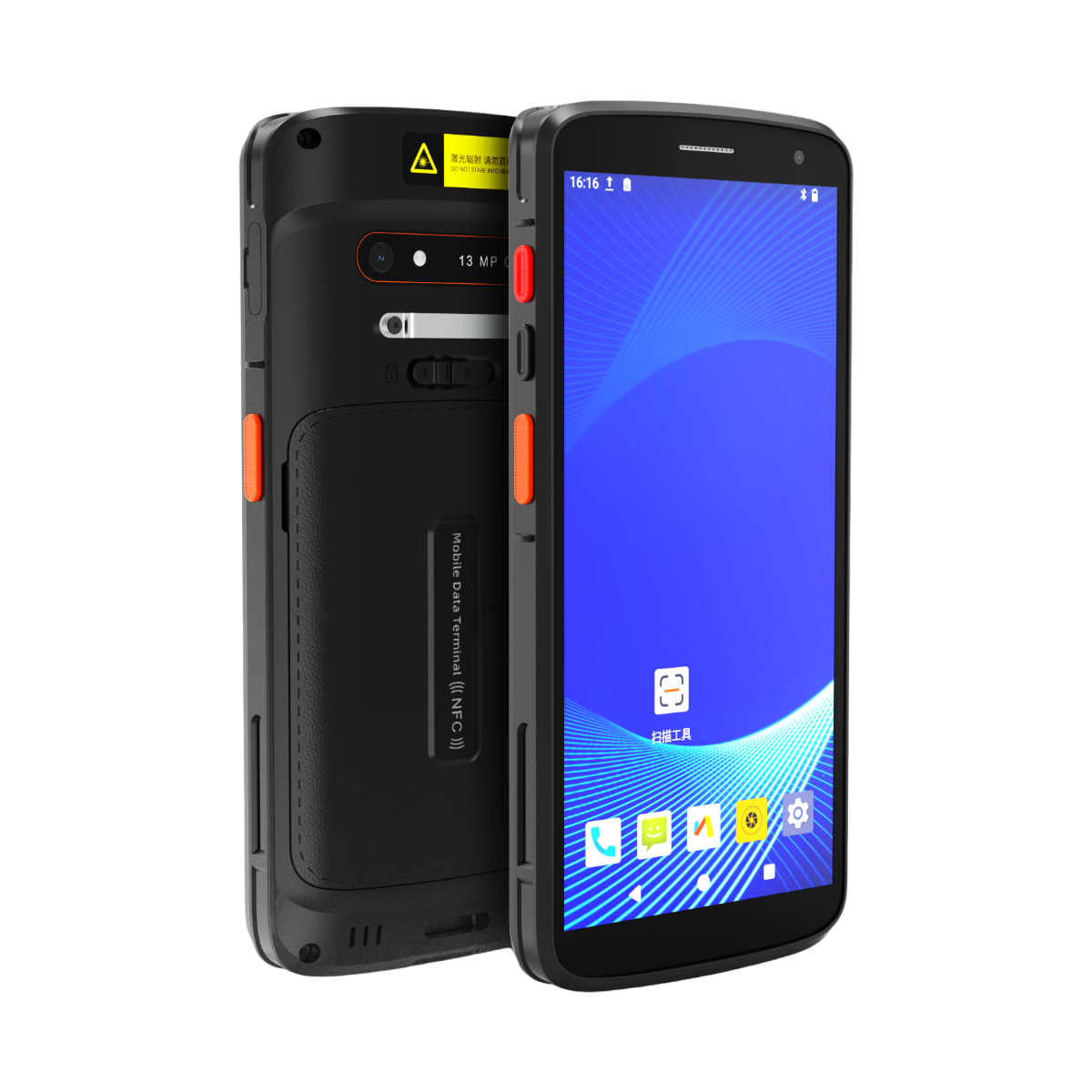

F2 is a rugged ultra-thin body mobile computer with Android 15 OS,high-performance processor,and 6inch touchscreen,and features barcode scanning, NFC RFID reading, cameras, excellent performance flexibly applied to logistics, warehousing, retail, healthcare, government projects etc.
| SPECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | USER ENVIRONMENT | ||
| Dimension | 164mm(H)x77.6mm(W)x16mm(D)±2 mm | Operating Temp | -20℃ to 50℃ |
| Weight | Net Weight :274g | Storage Temp | -20℃ to 70℃ |
| Display | 6 inch touchscreen(720×1440) | Humidity | 5%RH to 95%RH(non-condensing) |
| Backlight | LED backlight | Drop Specifications | 5ft./1.5 m drop to concreteacross the operating temperature range |
| Expansions | 1 SIM, 1 TF, | Sealing | IP67, IEC compliance |
| Battery | Rechargeable li-ion polymer, 3.85V,5050mAh | ESD | ±15kv air discharge, ±8kv direct discharge |
| PERFORMANCE CHARACTERSTICS | DEVELOPMENT ENVIRONMENT | ||
| CPU | 2.3GHz octa-core | SDK | Handheld-Wireless Software Development Kit |
| Operating System | Android 15 | Language | Java |
| StorageCamera | 3GB RAM/32GB ROM, 4GB RAM/64GB ROM MicroSD(max 256GB expansion) Rear13megapixel,front5.0megapixel(auto-focus with LEDflash) | Environment | Android Studio or Eclipse |
| DATA COMMUNICATION | BARCODE READER(OPTIONAL) | ||
| WWAN | 4G:TDD-LTE Band 38, 39, 40, 41; FDD-LTEBand 1, 2, 3, 4, 5,7,8,12, 17, 20; 3G:WCDMA (850/1900/2100MHz); 2G:GSM/GPRS/Edge (850/900/1800/1900MHz); | Scan engine | 2D barcode for 1D/2D code |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | Symbologies | PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| WPAN | Bluetooth 5.1 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | . | |
| ACCESSORIES | NFC(OPTIONAL) | ||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C | Frequency | 13.56MHz |
| Optional | Cradle | Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| R/W Range | 0-3cm | ||
