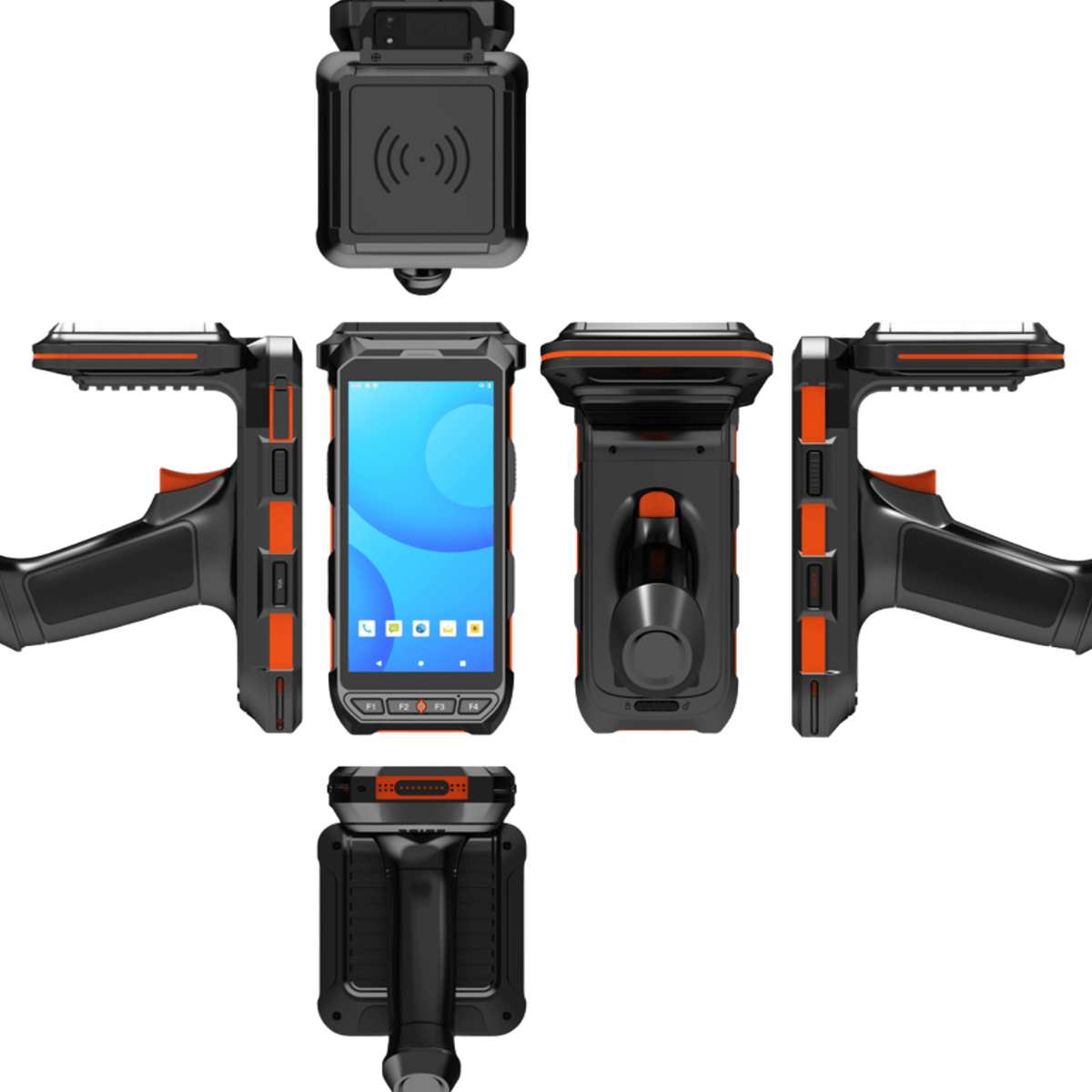

C6100 is an long distance uhf rfid reader with Impinj R2000/E710 4dbi circular polarized antenna,enables a reading range up to 20m in certain condition. It features Android 10/13, Octa-core processor, 5.5” large screen, powerful 8000mAh battery, 13MP camera, and optional barcode scanning,widely suitable for Logistics, Warehouse, Retail, Asset management etc.
| PECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | USER ENVIRONMENT | ||
| Dimension | 170mm(H)x80mm(W)x28mm(D)±2 mm | Operating Temp | -20℃ to 50℃ |
| Weight | Net Weight :600g(including battery&wrist strap) | Storage Temp | -20℃ to 70℃ |
| Display | Tough 5.5 in. TFT-LCD(720×1440)touch screen with backlight | Humidity | 5%RH to 95%RH(non-condensing) |
| Backlight | LED backlight | Drop Specifications | 5ft./1.5 m drop to concreteacross the operating temperature range |
| Expansions | 2 PSAM, 2 SIM, 1 TF， | Sealing | IP65, IEC compliance |
| Battery | Rechargeable li-ion polymer, 3.8V,8000mAh | ESD | ±15kv air discharge, ±8kv direct discharge |
| PERFORMANCE CHARACTERSTICS | DEVELOPMENT ENVIRONMENT | ||
| CPUCPU | Cortex A73 2.0GHz octa-core | SDK | Handheld-Wireless Software Development Kit |
| Operating System | Android 10/13 | Language | Java |
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | Environment | Android Studio or Eclipse |
| Camera | Rear 13 megapixel, front 5.0 megapixel | ||
| DATA COMMUNICATION | BARCODE READER(OPTIONAL) | ||
| WWAN | 4G:TDD-LTE Band 38, 39, 40, 41; FDD-LTEBand 1, 2, 3, 4, 5,7,8,12, 17, 20; 3G:WCDMA (850/1900/2100MHz); 2G:GSM/GPRS/Edge (850/900/1800/1900MHz); | 2D Imager Scanner | Honeywell 5703 Scan Engine/ Newland NLS-CM60/Newland NLS-N1 |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | Symbologies | PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | . | |
| UHF RFID(OPTIONAL) | NFC(OPTIONAL) | ||
| Frequency | 865~868MHz/ 920~925MHz/902-928MHz | Frequency | 13.56MHz |
| Protocol | EPC C1 GEN2/ISO 18000-6C | Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Antenna Gain | Circular antenna(4dBi) | R/W Range | 0-3cm |
| R/W Range | 20m(depend on tags and environment) | ||
| PSAM SECURITY(OPTIONAL) | ACCESSORIES | ||
| Protocol | ISO 7816 | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C |
| Baudrate | 9600, 19200, 38400,43000, 56000,57600, 115200 | Optional | Cradle |
| Slot | 2 slots(maximum) | ||
