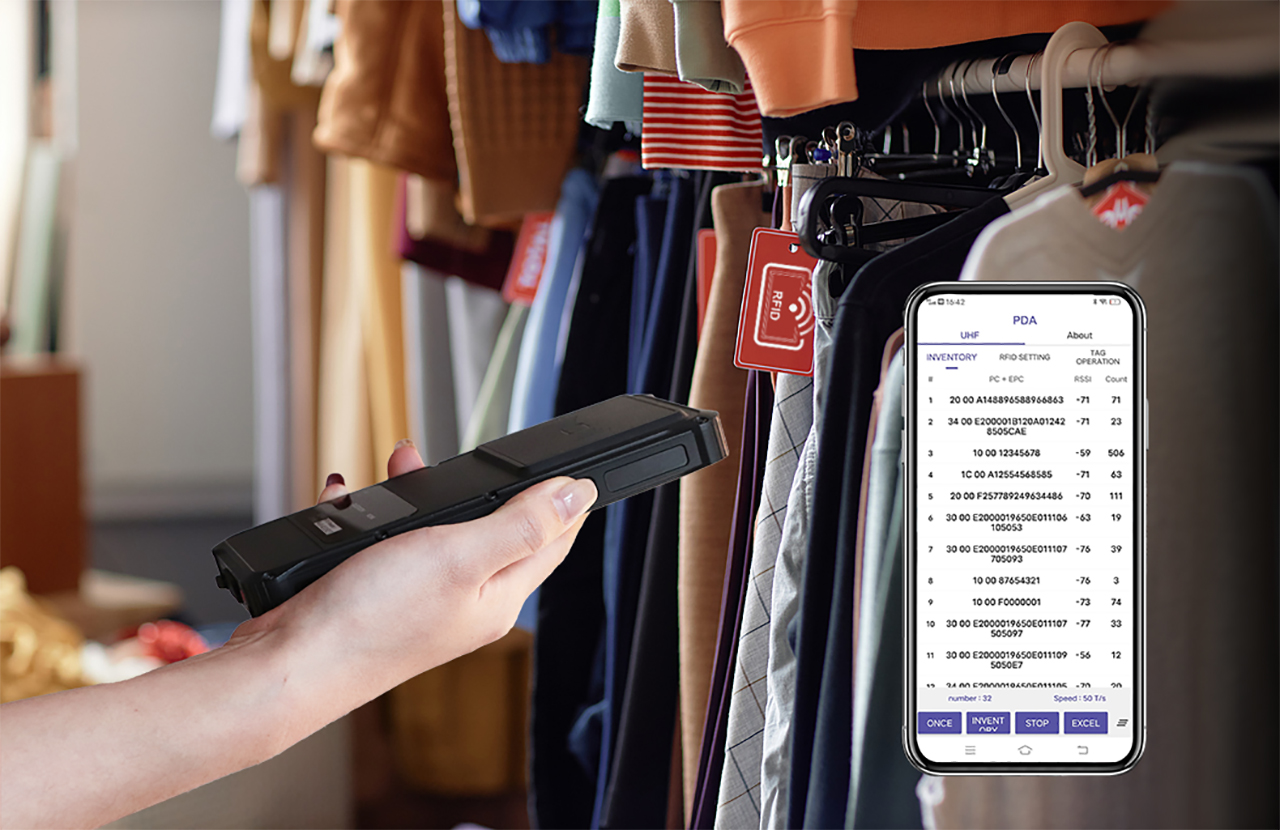

A8 UHF RFID Reader is an bluetooth reader with impinj chip, which is aimed to read and write to EPC Class 1 Gen 2 (ISO18000-6C) UHF tags with long distance , and connect to android or ios mobile phone via Bluetooth for data collection and reception, featuring an advanced multi-tag read function, it can simultaneously process data from multiple tags, significantly boosting productivity,it is an ideal choice for inventory checks, cycle counting, asset management, vehicle identificationand etc.
| PHYSICAL CHARACTERISTICS | ||||

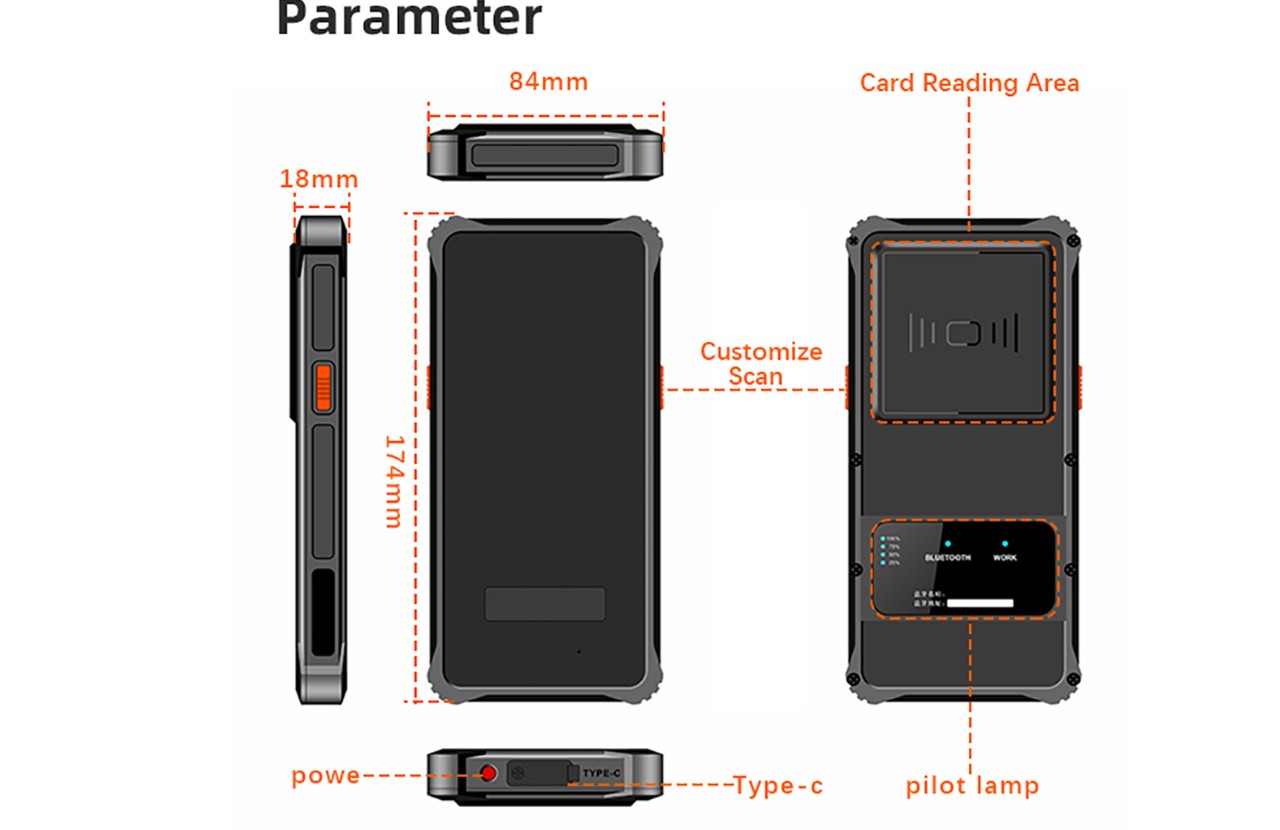

| Dimension | 174×84×18±2mm | |||
| Weight | 300g | |||
| Bluetooth | BT5.0 | |||
| Battery | 5600mAh | |||
| Status Alert | Power,Bluetooth,Work | |||
| Interface | Type-c | |||
| Protocols | EPC Class 1 Gen 2（ISO 18000-6C) | |||
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz | |||
| R/W Range | 0-20m(depend on tags and environment) | |||
| Application software interface | Provide Android API development kits | |||
| Operating Temp. | -20℃ to 50℃ | |||
| Storage Temp | -20℃ to 70℃ | |||
| Humidity | 5%RH to 95%RH(non-condensing) | |||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | |||
| Sealing | IP65, IEC compliance | |||
