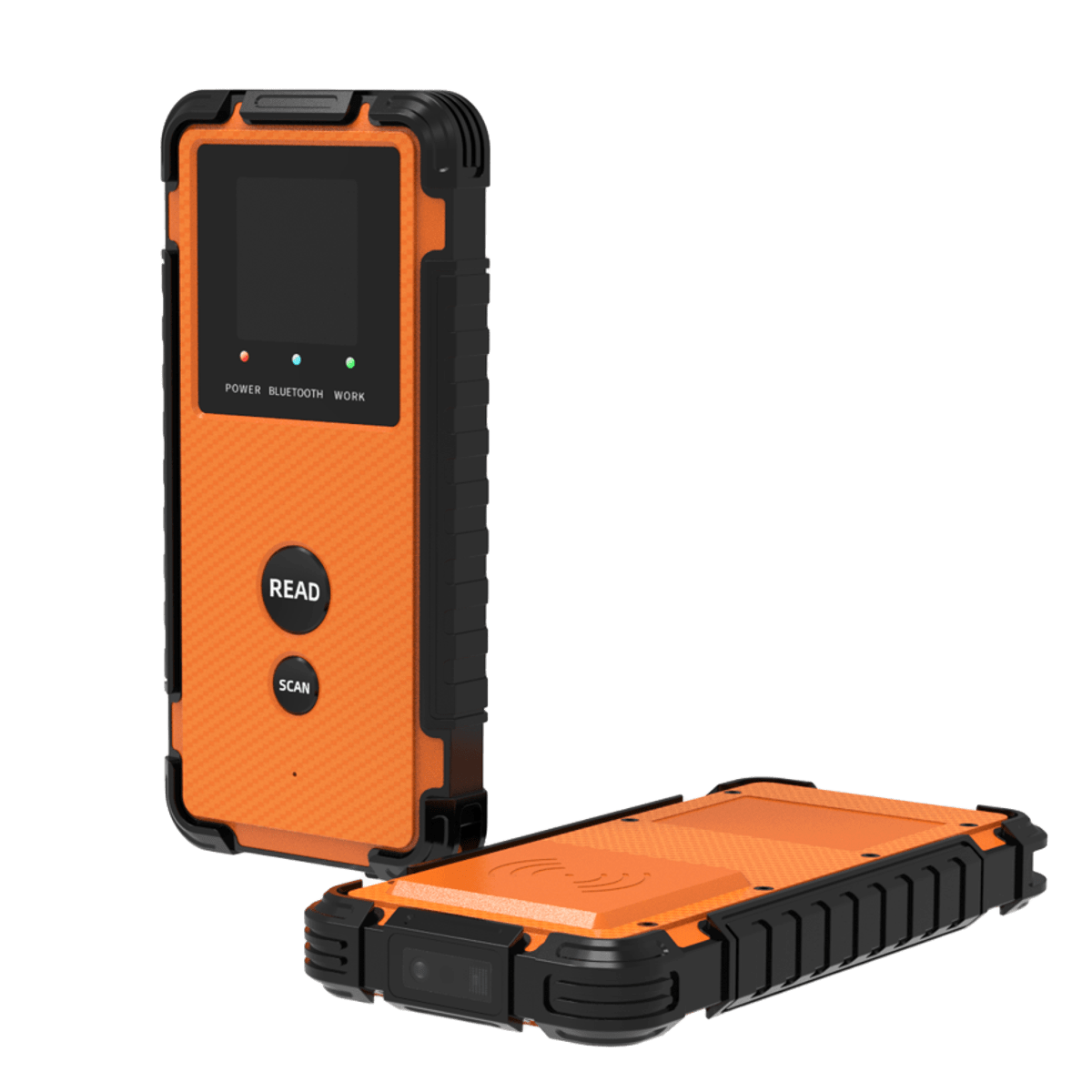

A5 is a compact and durable UHF RFID& barcode scanner, designed to enhance scanning efficiency for a broad spectrum of tasks. and it communicates and transmit data with a variety of android devices via Bluetooth,support excellent reading performance, sensitivity & stability,as well as long rfid reading distance 0-5 meters, which make it a versatile choice for businesses aiming to optimize their operations.

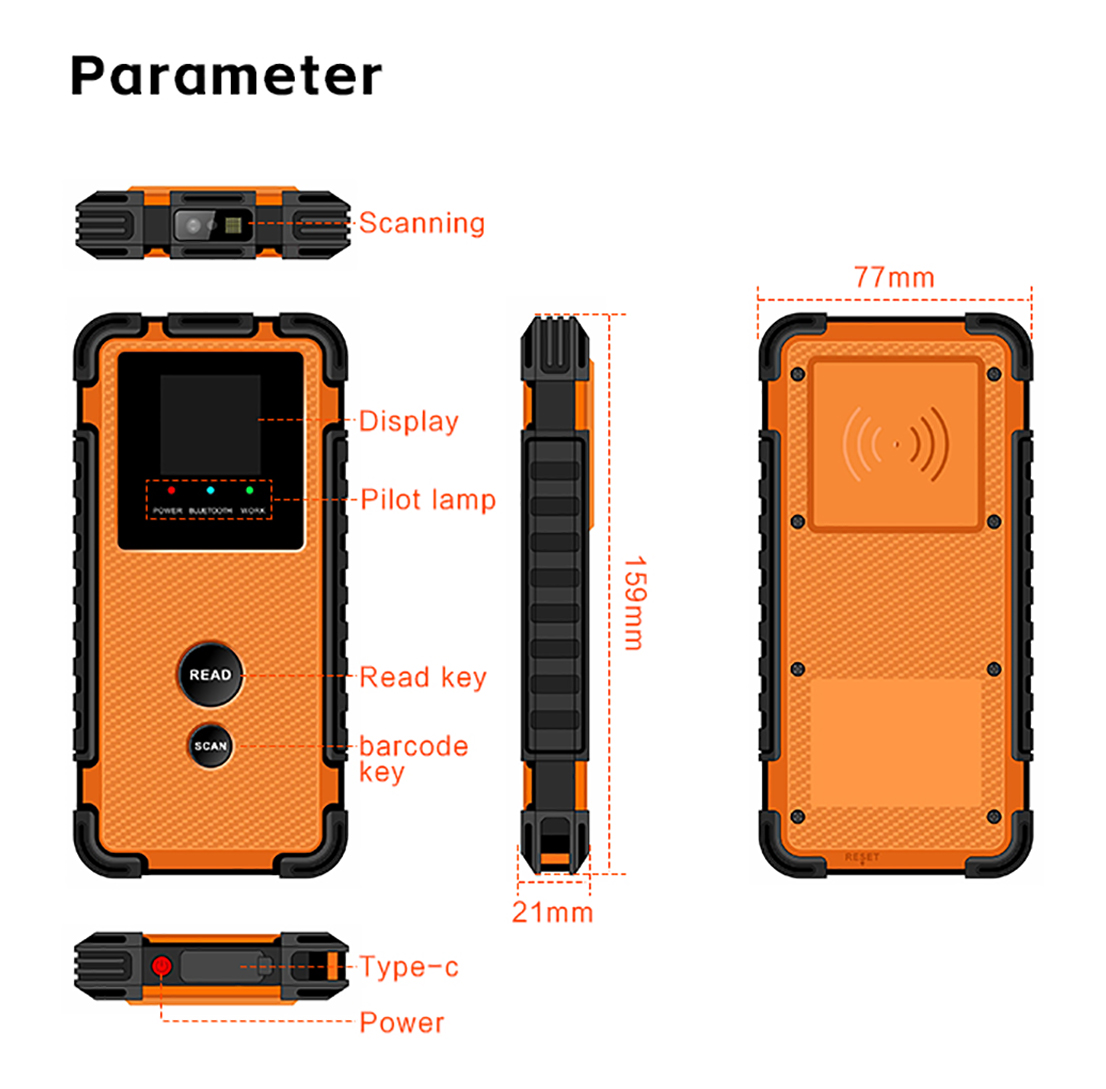

| PHYSICAL CHARACTERISTICS | ||||
| Dimension | 159×77×21±2mm | |||
| Weight | 245g | |||
| Bluetooth | BT4.2 | |||
| Battery | 5600mAh | |||
| Status Alert | Power,Bluetooth,Work | |||
| Interface | Type-c | |||
| DATA COLLECTION | ||||
| Barcode scanner(optional) | ||||
| 2D Barcode | 2D CMOS Imager | |||
| PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||||
| RFID reader | ||||
| Protocols | EPC Class 1 Gen 2（ISO 18000-6C) | |||
| Frequency | 865-868 MHz / 902-928 MHz | |||
| R/W Range | 0-5m(depend on tags and environment) | |||
| USER ENVIRONMENT | ||||
| Application software interface | Provide Android API development kits | |||
| Operating Temp. | -20℃ to 50℃ | |||
| Storage Temp | -20℃ to 70℃ | |||
| Humidity | 5%RH to 95%RH(non-condensing) | |||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | |||
| Sealing | IP65, IEC compliance | |||
