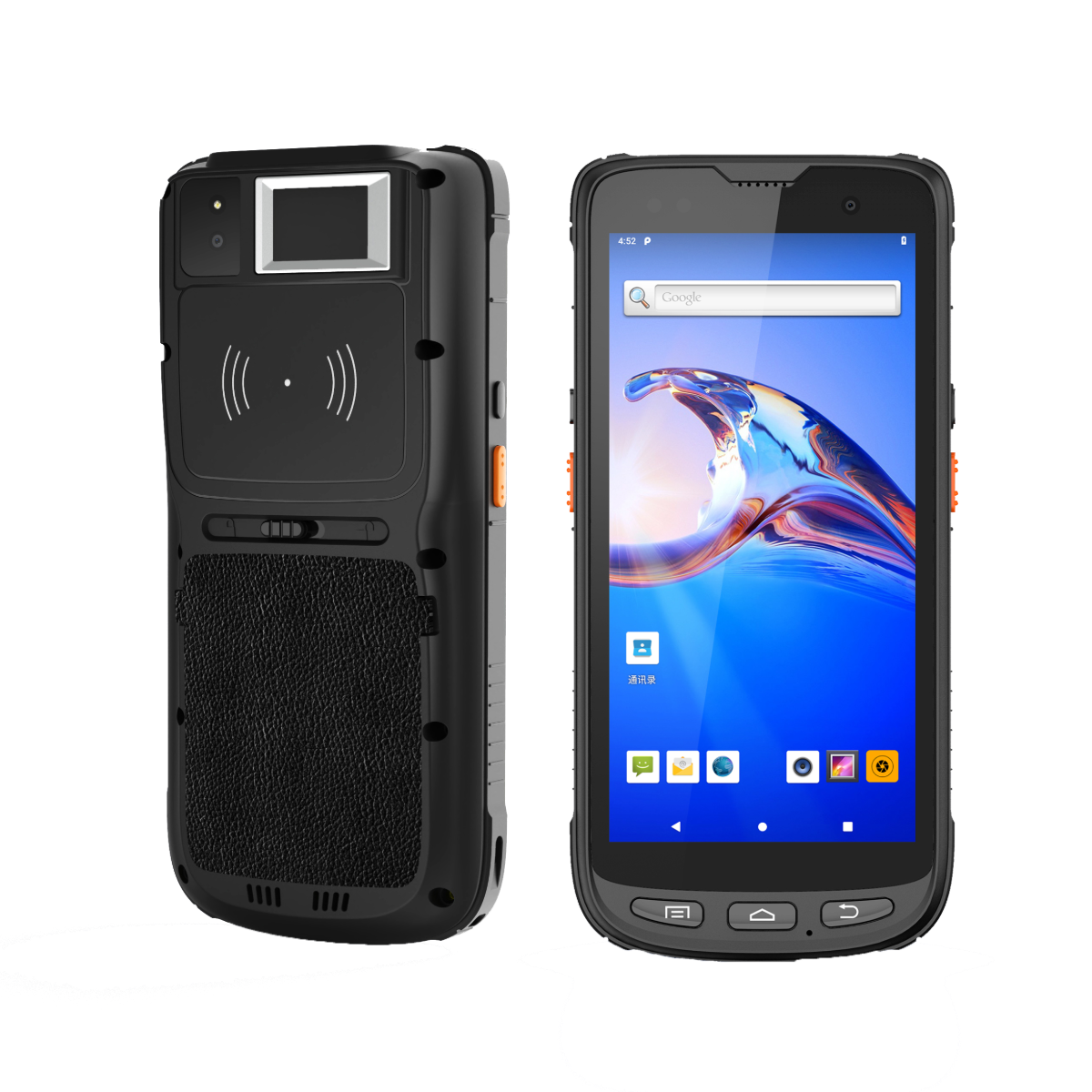

BX6200 is a Android Biometrics Reader PDA with high extensibility, equipped with android 10 OS, powerful Octa-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, support PSAM secure data encryption,barcoding, UHF/NFC/HF/LF RFID and camera,which fully satisfy your different industrial needs.
| SPECIFICATIONS | ||||
| PHYSICAL CHARACTERISTICS | USER ENVIRONMENT | |||
| Dimension | 166mm(H)x79mm(W)x27mm(D)±2 mm | Operating Temp | -20℃ to 50℃ | |
| Weight | Net Weight :430g(including battery&wrist strap) | Storage Temp | -20℃ to 70℃ | |
| Display | Tough 5.5 in. TFT-LCD(720×1440)touch screen with backlight | Humidity | 5%RH to 95%RH(non-condensing) | |
| Backlight | LED backlight | Drop Specifications | 5ft./1.5 m drop to concreteacross the operating temperature range | |
| Expansions | 2 PSAM, 1 SIM, 1 TF， | Sealing | IP65, IEC compliance | |
| Battery | Rechargeable li-ion polymer, 3.8V,4800mAh | ESD | ±15kv air discharge, ±8kv direct discharge | |
| PERFORMANCE CHARACTERSTICS | FINGERPRINT READER(OPTIONAL) | |||
| CPUCPU | Cortex A73 2.0GHz octa-core | Sensor | TCS1/FBI | |
| Operating System | Android 10.0 | Sensor type | Capacitive, area sensor | |
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | Resolution | 508 DPI | |
| Camera | Rear 13 megapixel, front 5.0 megapixel | Performance | FRR<0.008%, FAR<0.005% | |
| Capacity | 1000 | |||
| DATA COMMUNICATION | BARCODE READER(OPTIONAL) | |||
| WWAN | 4G:TDD-LTE Band 38, 39, 40, 41; FDD-LTEBand 1, 2, 3, 4, 5,7,8,12, 17, 20; 3G:WCDMA (850/1900/2100MHz); 2G:GSM/GPRS/Edge (850/900/1800/1900MHz); | 2D Imager Scanner | Zebra Se4710 | |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | Symbologies | PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc | |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 | |||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | . | ||
| UHF RFID(OPTIONAL) | HF/NFC(OPTIONAL) | |||
| Frequency | 865~868MHz/920~925MHz/902-928MHz | Frequency | 13.56MHz | |
| Protocol | EPC C1 GEN2/ISO 18000-6C | Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | |
| Antenna Gain | Circular antenna(2dBi) | R/W Range | 3cm to 5cm | |
| R/W Range | 2-3m(depend on tags and environment) | |||
| LF RFID(OPTIONAL) | PSAM SECURITY(OPTIONAL) | |||
| Frequency | 125KHz/134.2KHz(FDX-B/HDX) | Protocol | ISO 7816 | |
| Protocol | ISO 11784&11785 | Baudrate | 9600, 19200, 38400,43000, 56000,57600, 115200 | |
| R/W Range | 2cm to 10cm | Slot | 2 slots(maximum) | |
